| Weight | N/A |
|---|---|
| Width |
63", 66", 72", 78", 81", 84", 96" |
- Product Description
- Additional Information
- Reviews

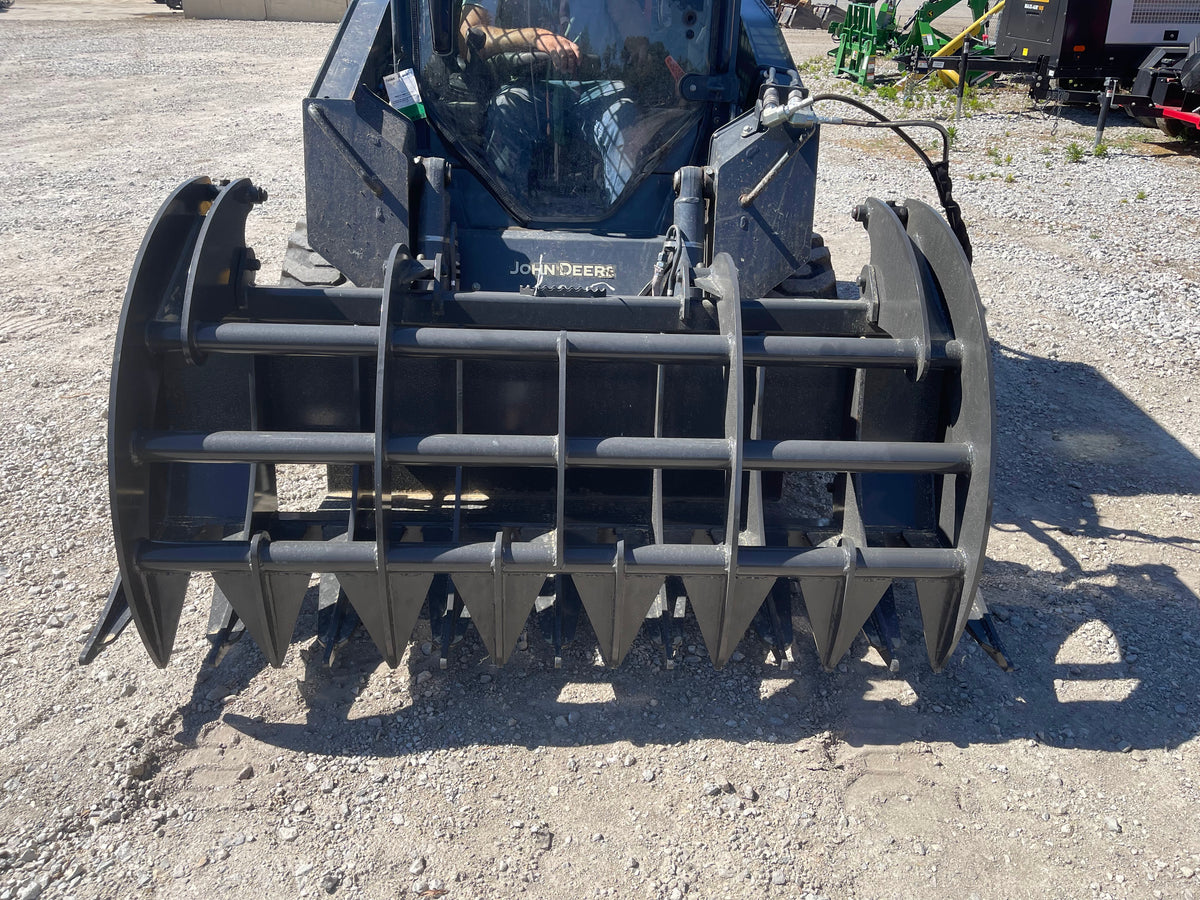

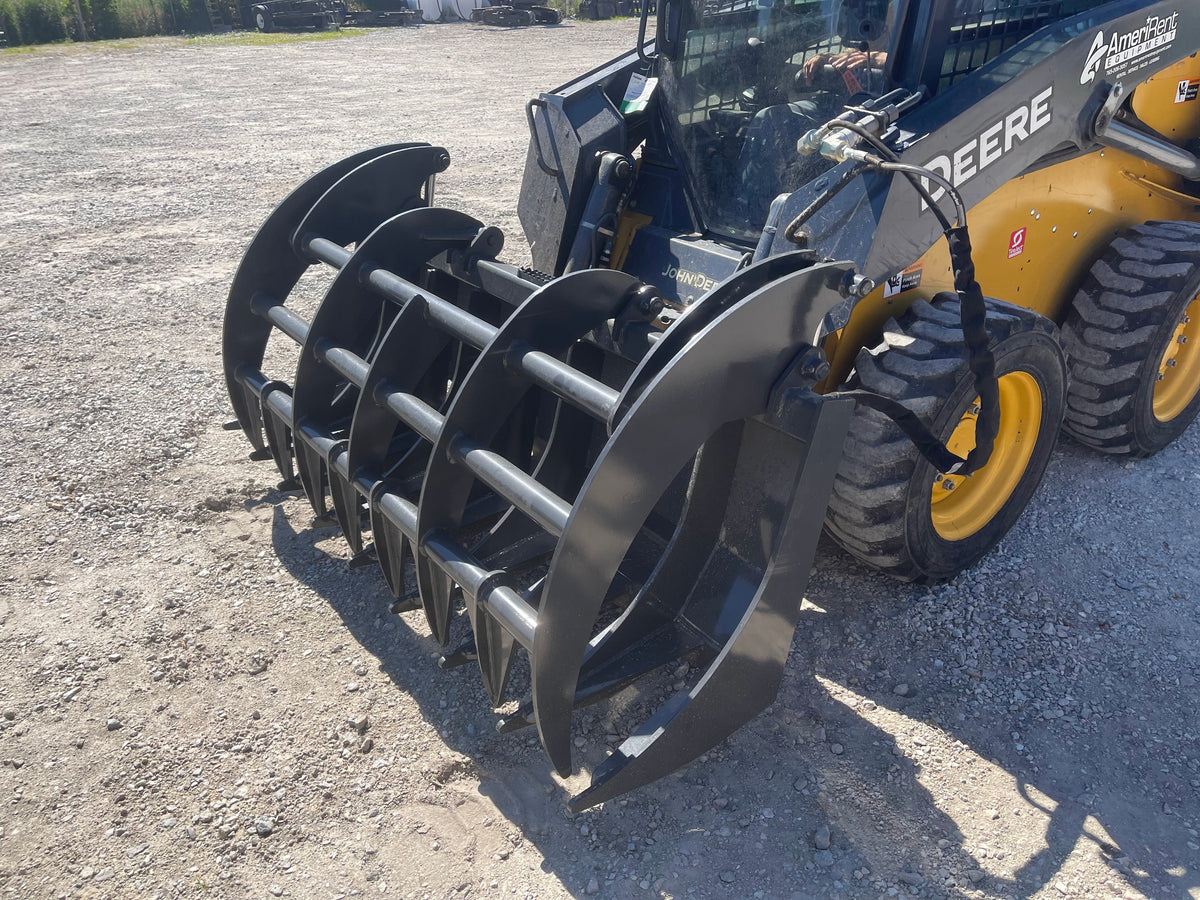

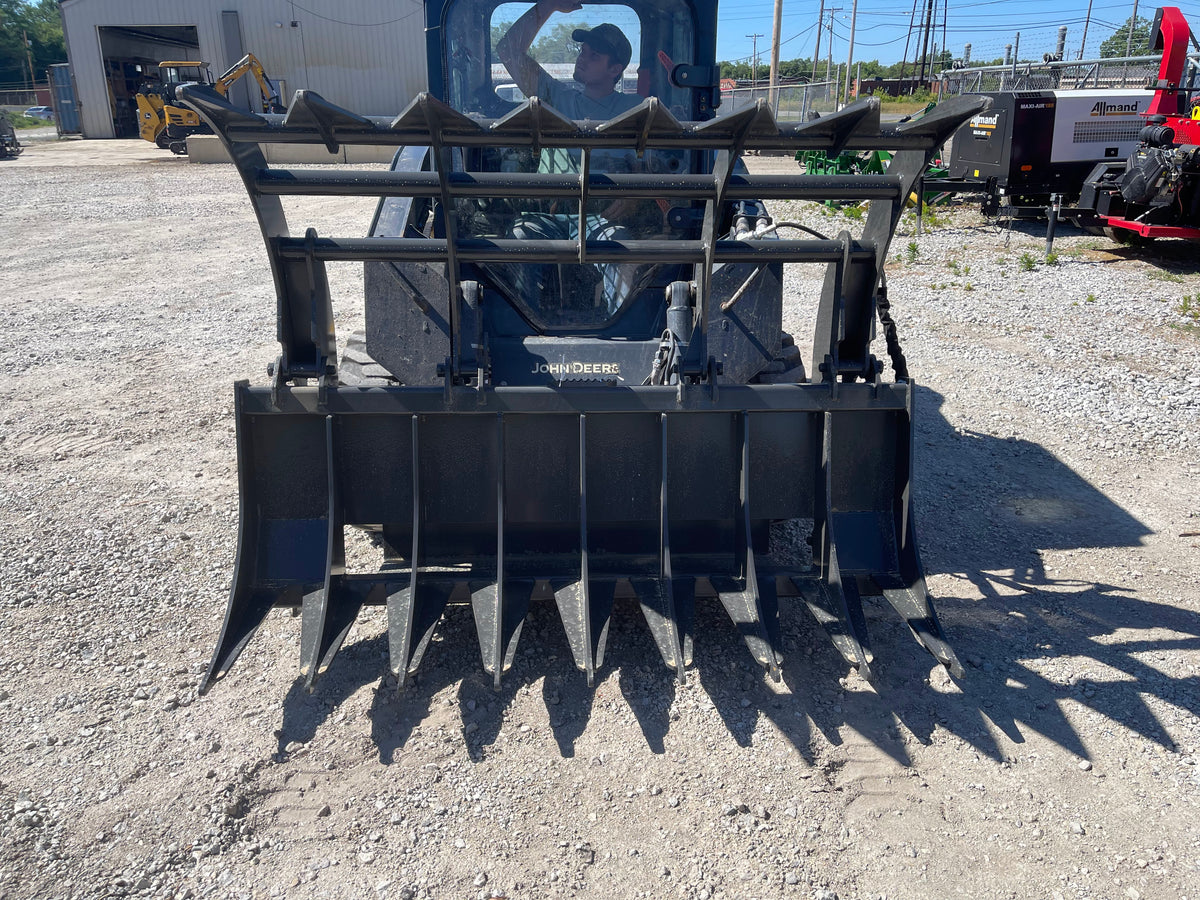

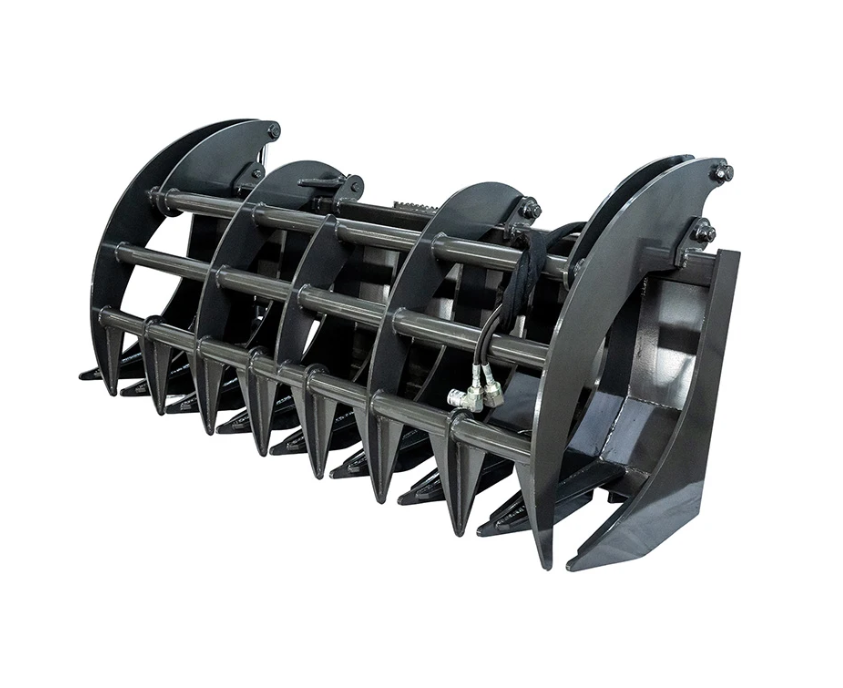

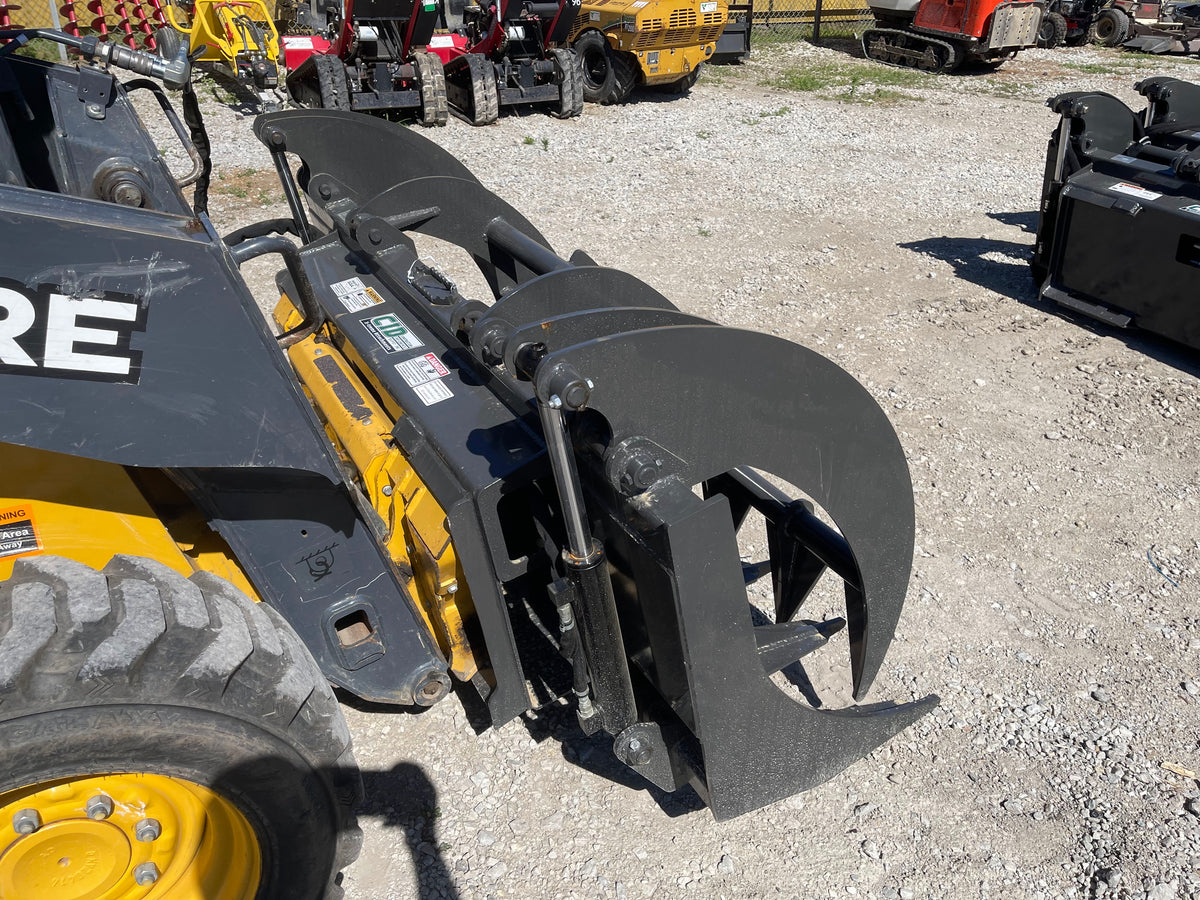

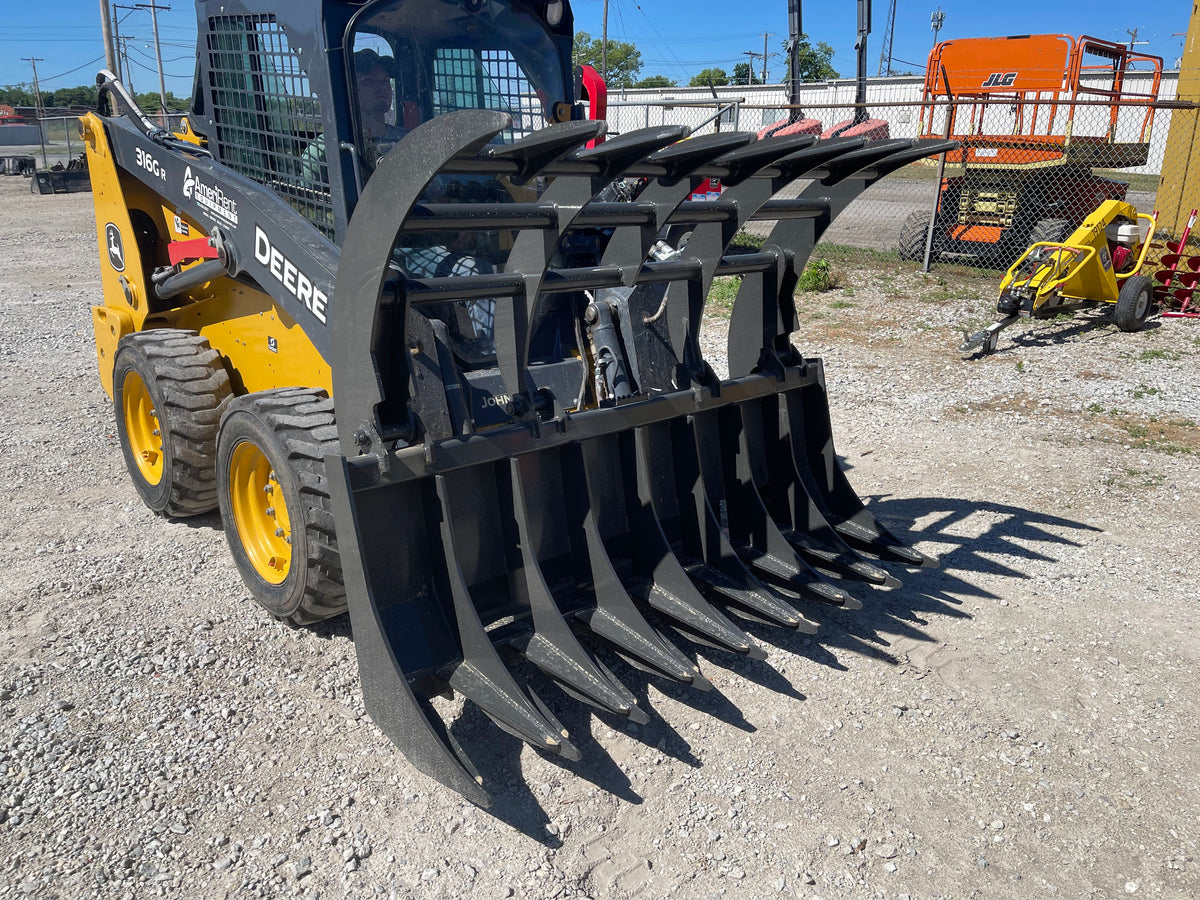

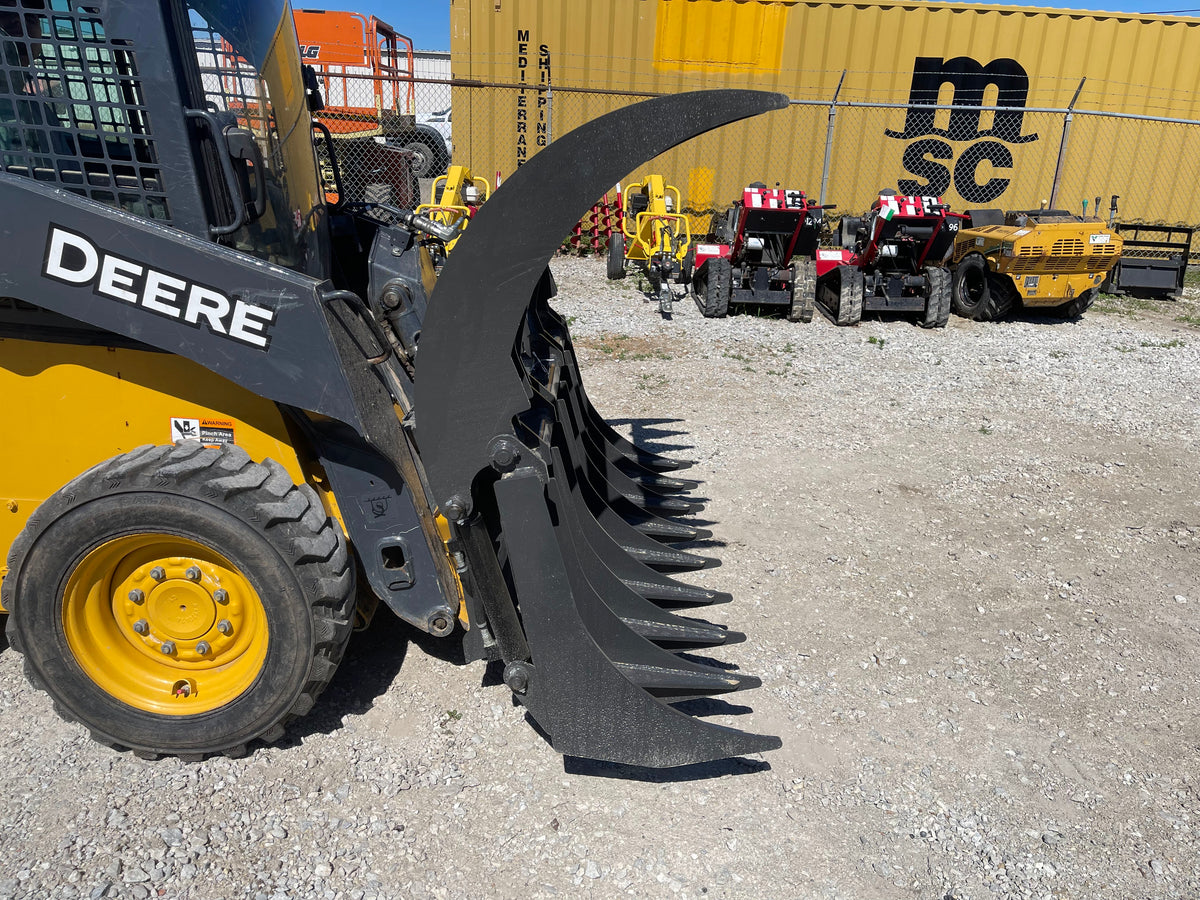

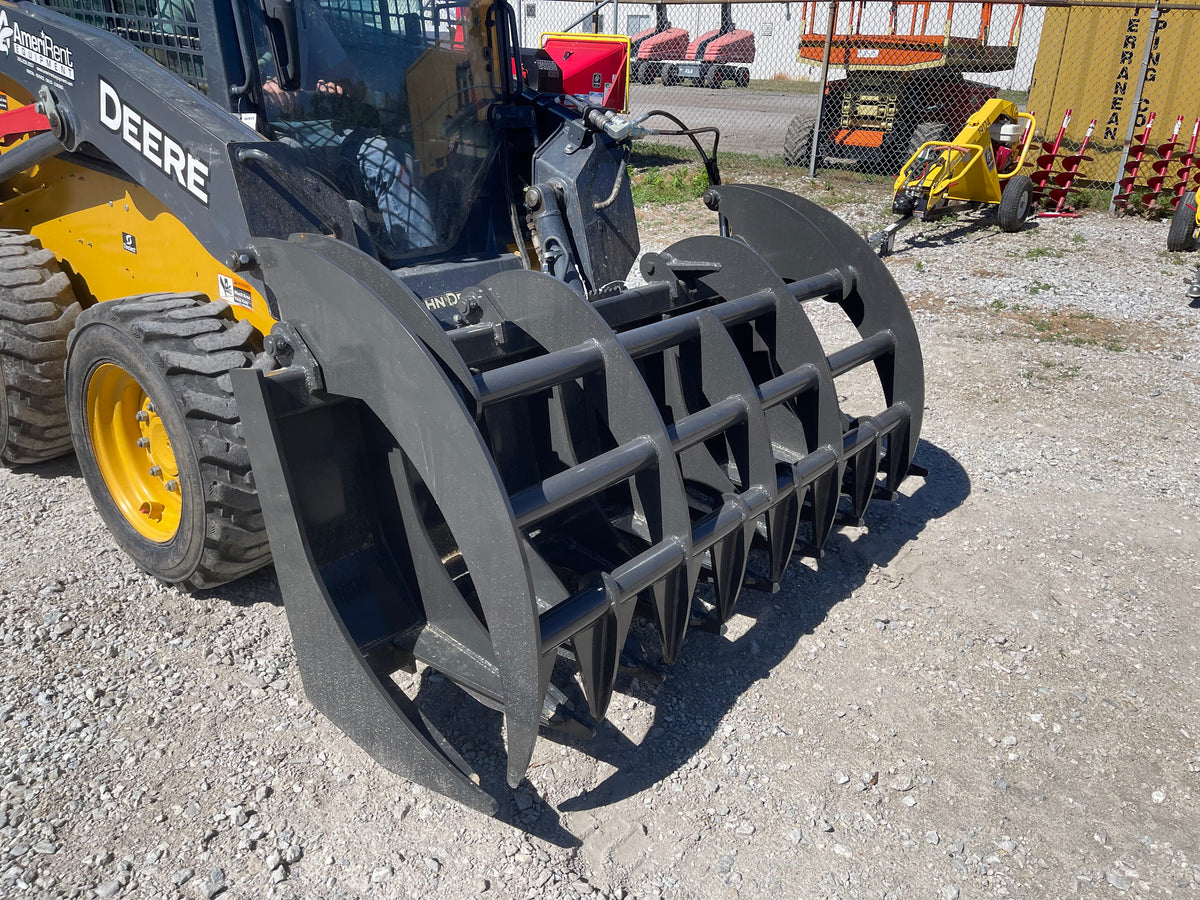

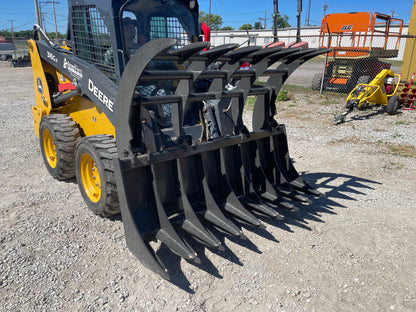

Heavy Duty Skid Steer Grapple Rake Attachment
The CID Heavy Duty Skid Steer Grapple Rake is built for clearing, grabbing and moving heavy brush, roots, logs, rocks and other oddly shaped, hard-to-lift material. Rake debris into tight piles for burning, root material out of the ground, or load it straight into a dump truck or trailer. It's sized for 50–70 HP skid steers and compact track loaders, the right fit for owners who need more than a light-duty grapple without paying for the X-treme.
Heavy Duty Skid Steer Grapple Rake Attachment Specs.

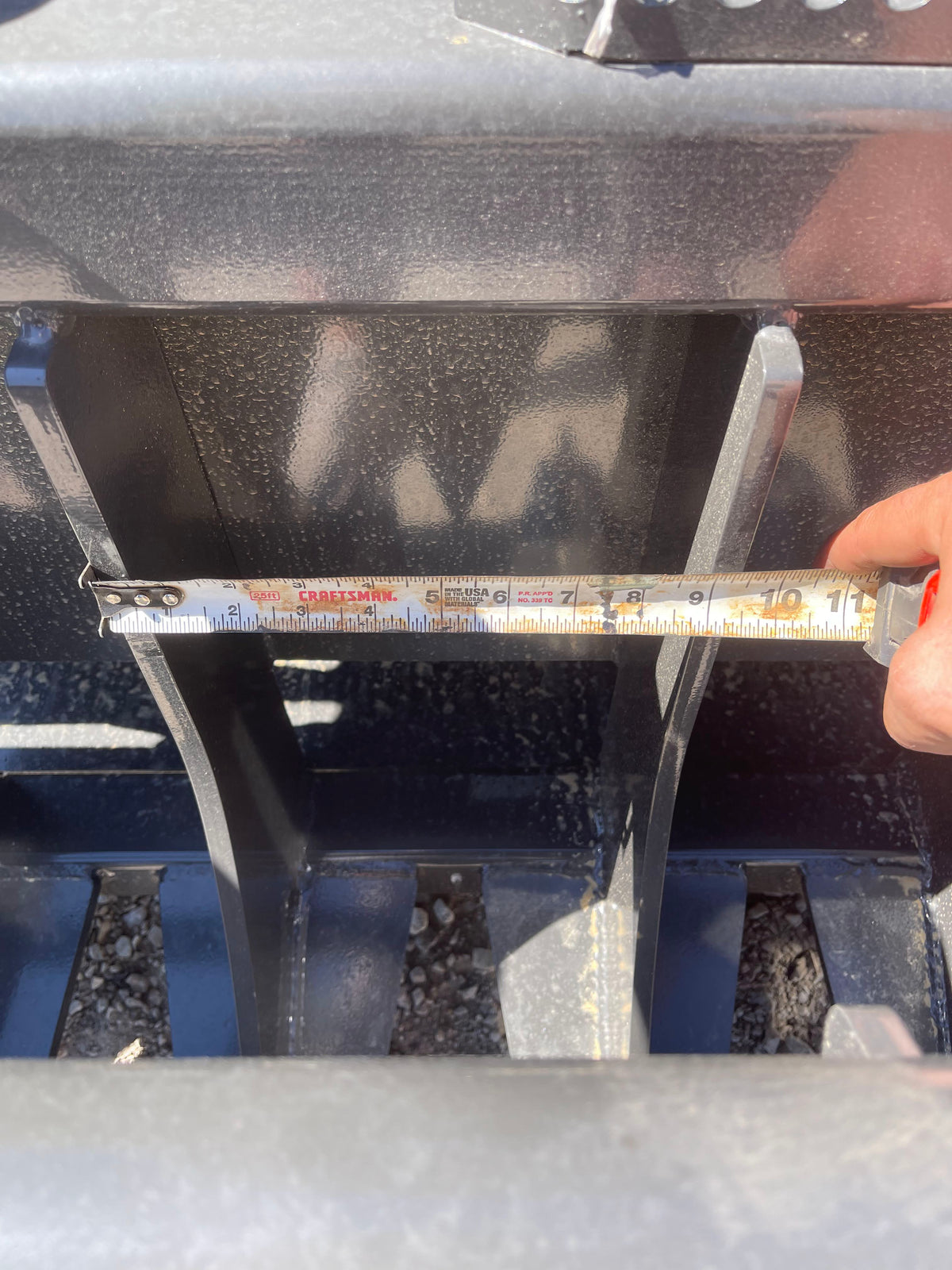

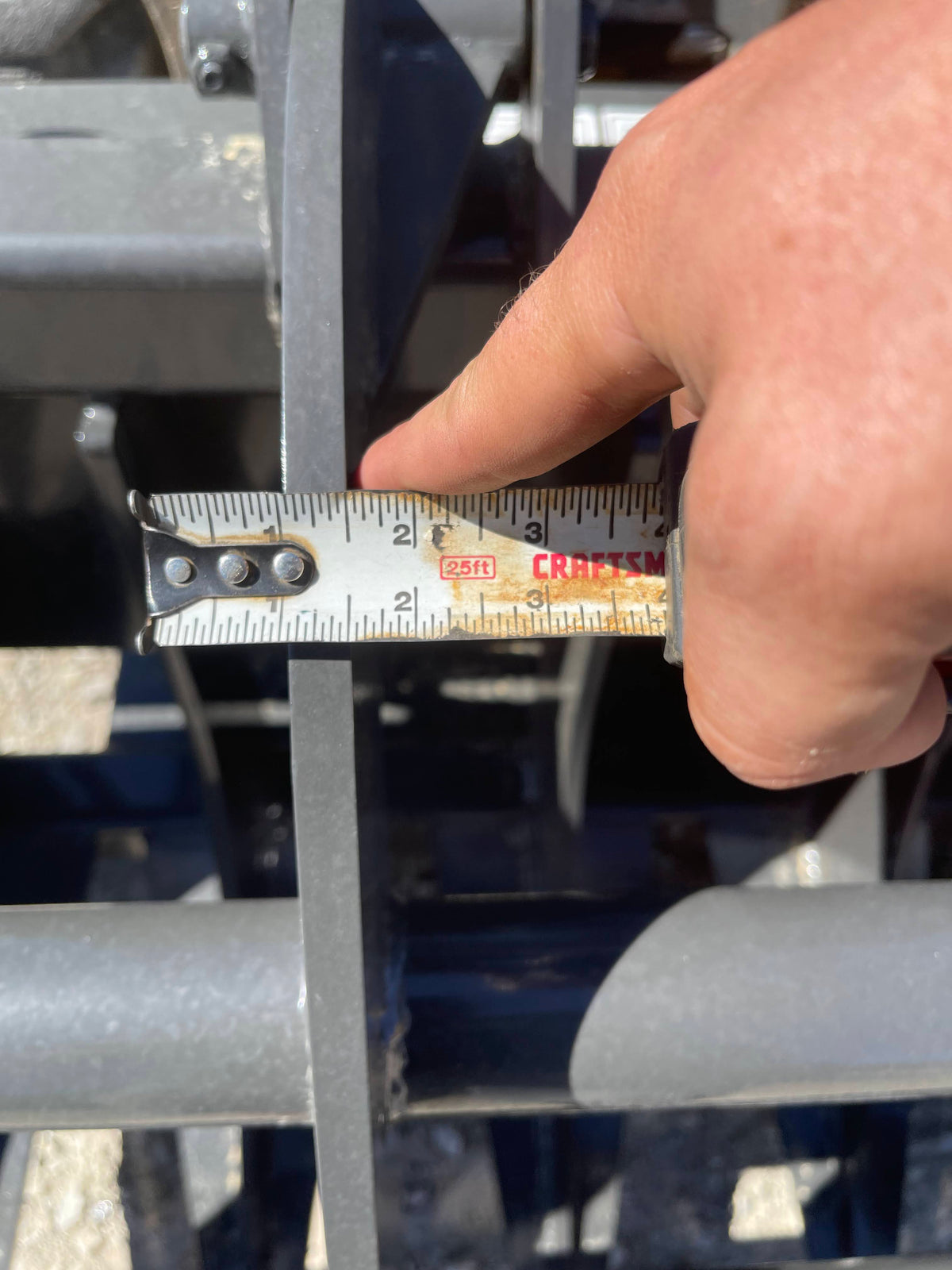

Built from 1/2″ steel and powered by dual 2″ bore × 10″ stroke cylinders, the Heavy Duty Grapple Rake opens to 51 inches with a 26″ front-to-back length. Recommended for skid steers in the 50–70 HP range.

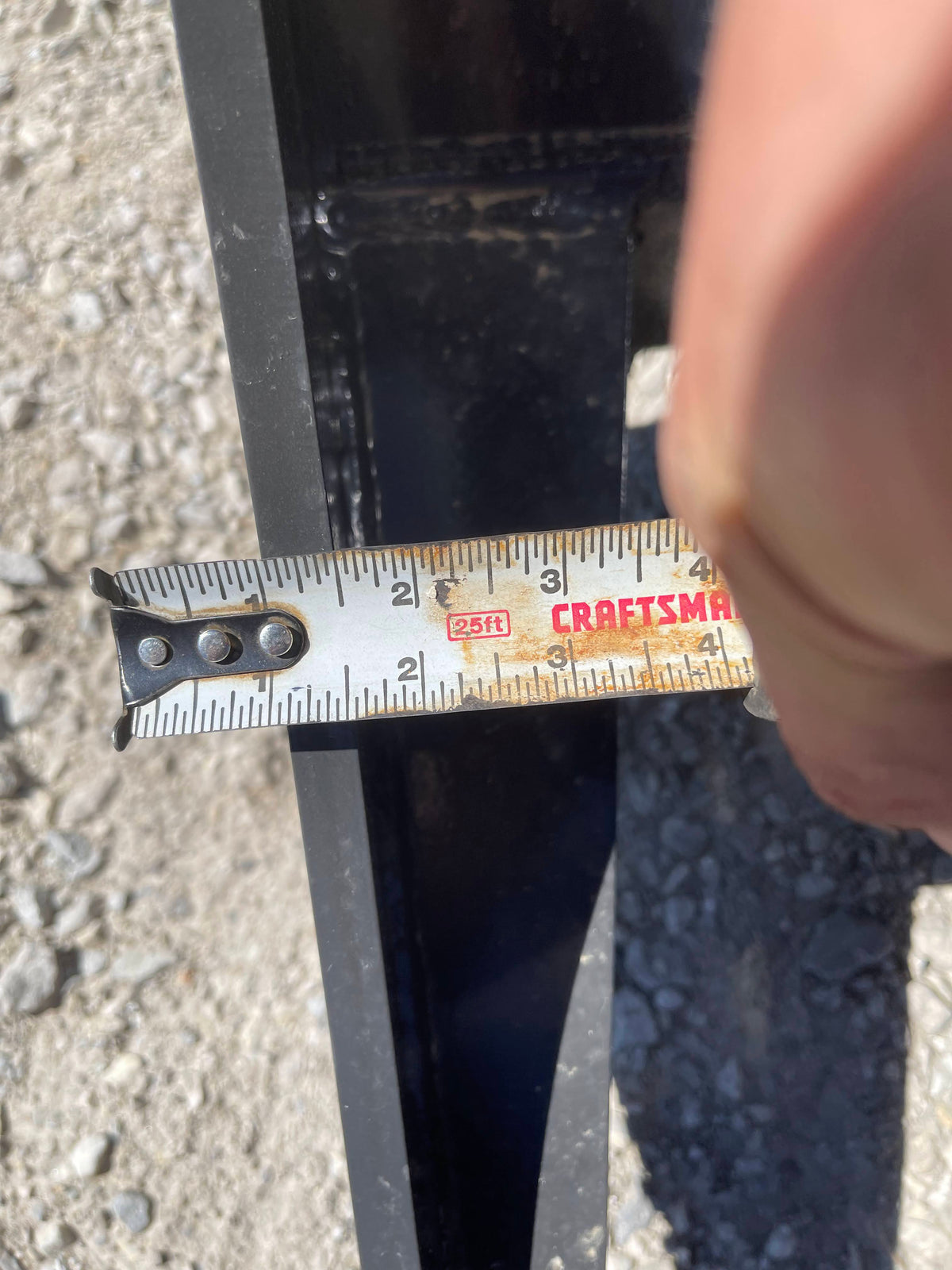

- 1/2″ steel construction.
- Dual 2″ × 10″ grapple cylinders.
- 51″ open tine height, 26″ length.
- Rated for 50–70 HP skid steers and compact track loaders.
- Unique design makes it easy to roll debris into tight piles.
- Heavy Duty sizes: 63″, 66″, 72″, 78″, 81″, 84″, 96″.
| Width | Model | Weight |
|---|---|---|
| 63″ | HDGR63 | 777 lbs |
| 66″ | HDGR66 | 814 lbs |
| 72″ | HDGR72 | 874 lbs |
| 78″ | HDGR78 | 888 lbs |
| 81″ | HDGR81 | 950 lbs |
| 84″ | HDGR84 | 955 lbs |
| 96″ | HDGR96 | 1,056 lbs |
Running a machine over 65 HP or doing daily land clearing? Step up to the X-treme Duty Grapple Rake by CID.
Need a polycarbonate door?
Upgrade your cab protection with a tough, jobsite-ready polycarbonate door option.
Shop Polycarbonate Doors
Heavy Duty Skid Steer Grapple Rake Attachment Extra Protection.
Our Heavy Duty Skid Steer Grapple Rake Attachments are powder coated and all hoses come with protective sleeves to give the attachment the best protection. All CID attachments are warranted to be free from defects in materials and workmanship for a period of 12 months. This warranty starts from the initial sale, lease or rental date. For full warranty information you can click here. → Warranty Information Page.
