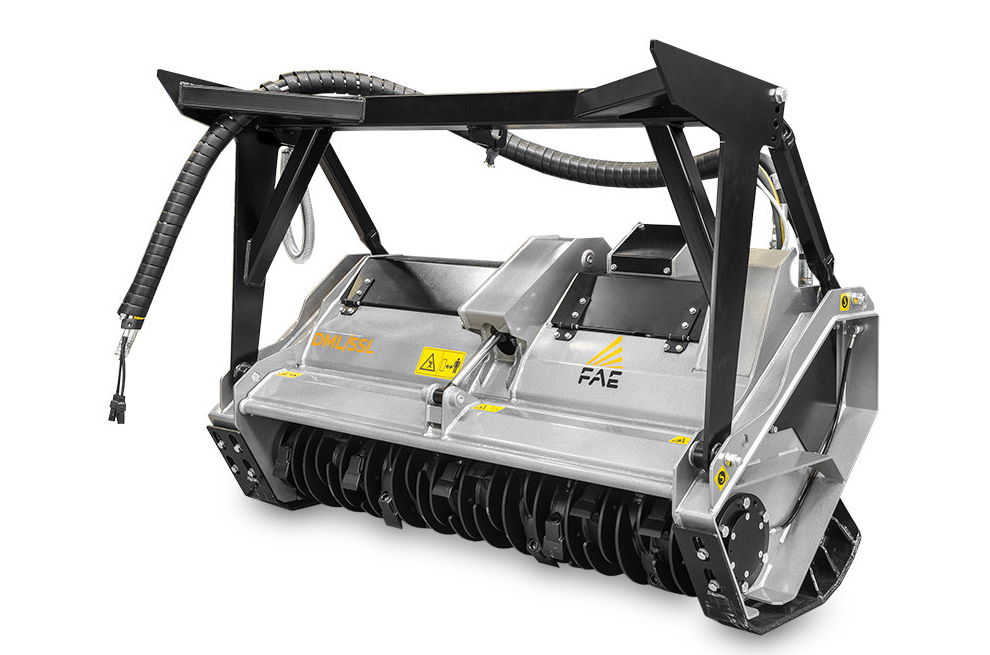

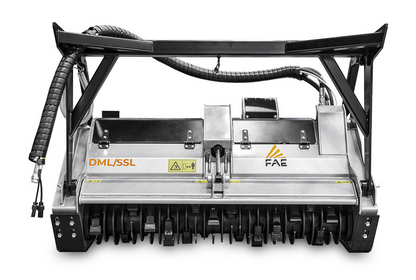

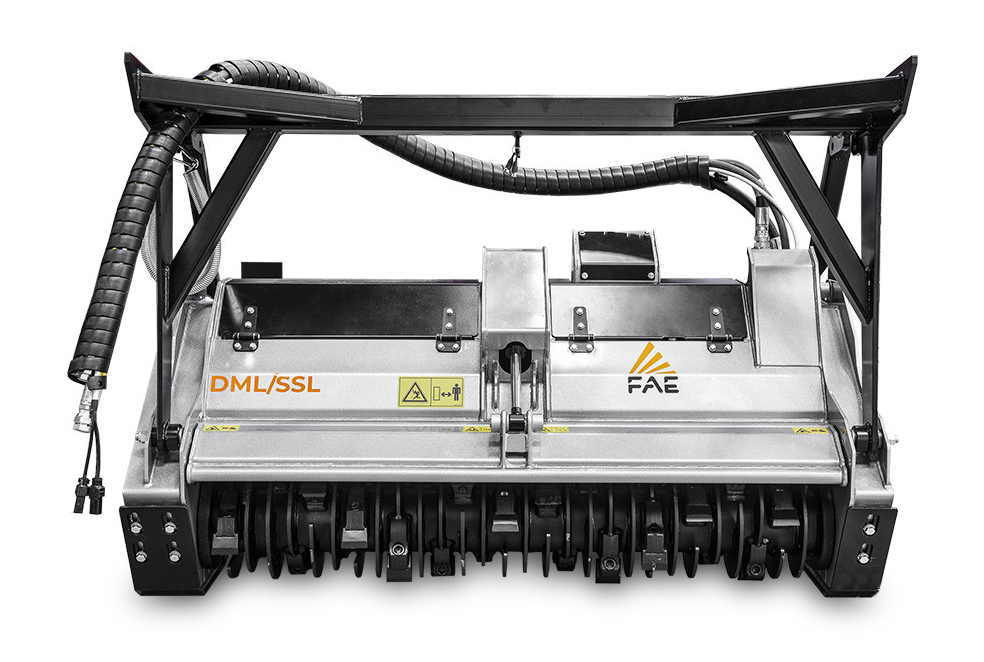

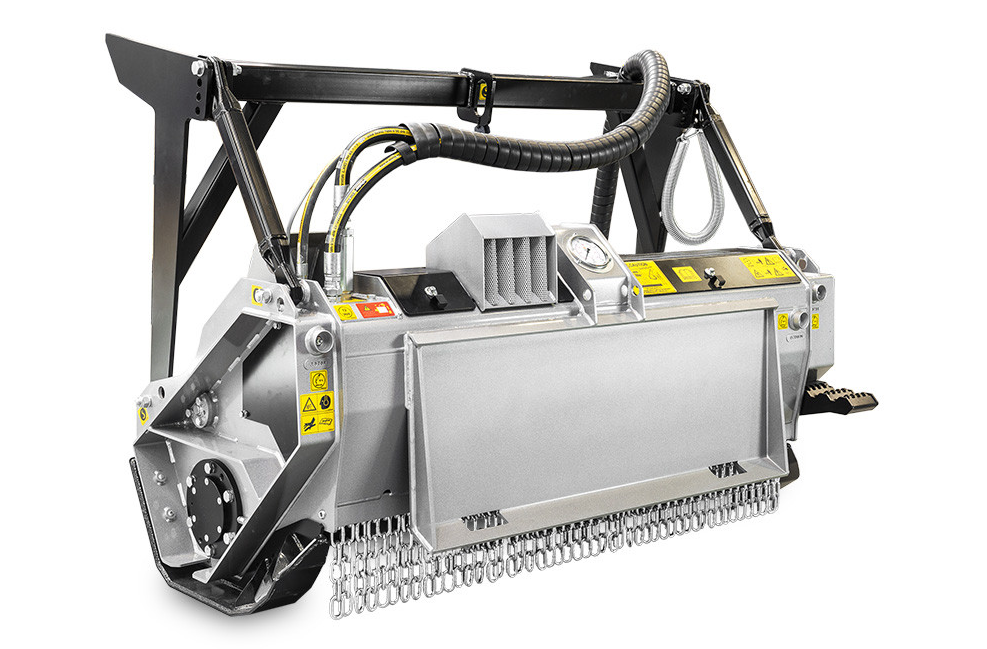

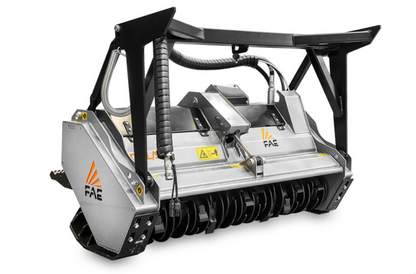

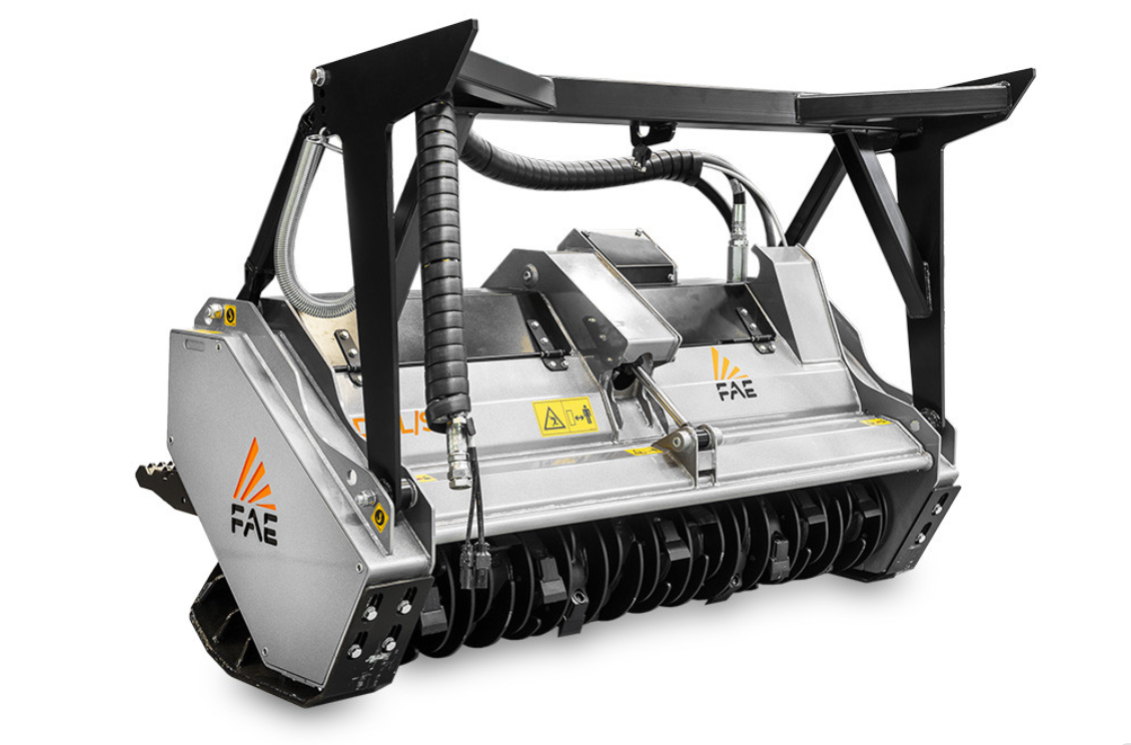

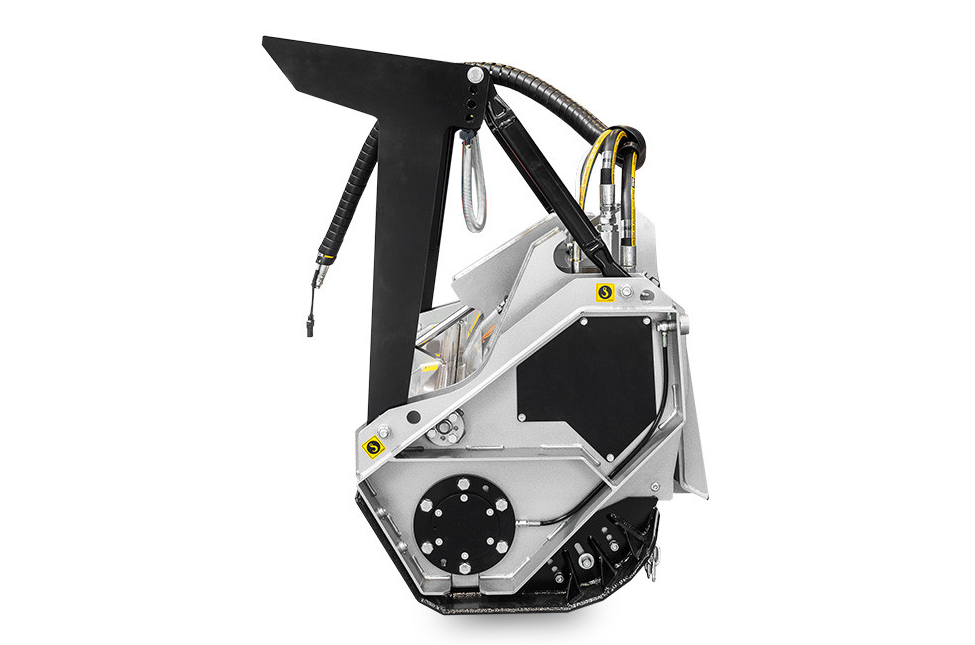

FAE DML/SSL Drum Mulcher
FAE DML/SSL Drum Mulcher
The DML/SSL forestry mulcher is designed for skid steers in the 50–75 hp range and is capable of shredding material up to 5 inches in diameter. This mulching head delivers high productivity in vegetation management and excels in wooded and forestry environments where the agility and compact size of a skid steer are essential. Engineered for durability and ease of maintenance, the DML/SSL is built to support demanding professional use while minimizing downtime for the operator.
The DML/SSL is available in a VT version with a fixed-tooth rotor or a BL version featuring a Bite Limiter rotor with fixed blades. FAE’s exclusive Sonic technology is available on both VT and BL configurations to optimize hydraulic performance and efficiency.
Contact us for pricing! 🛡️ Need a Polycarbonate Door?
Click below to see our Purchasing a Polycarbonate Door guide — quick, simple, and super helpful.
➜ Purchasing a Polycarbonate Door
Regular price
$0.00
Regular price
Sale price
$0.00
Shipping calculated at checkout.
Quantity
View full details
Couldn't load pickup availability
- Product Description
- Specifications
- Media
- Reviews
🌲 FAE DML/SSL Forestry Mulcher (Skid Steer)
A compact, high-productivity forestry mulcher designed for skid steers in the 50–75 hp class, built to process
brush and woody material up to 5" max diameter. Available in multiple configurations so you can match your jobsite conditions,
hydraulic package, and cut quality goals. :contentReference[oaicite:0]{index=0}
✅ Power Range
50–75 hp carriers (DML/SSL family)
🪵 Shredding Capacity
Up to 5" material (max)
⚙️ Version Choices
VT • BL • SONIC (VT/BL)
What the DML/SSL is built for
- Vegetation management where a skid steer’s agility matters: tight areas, trails, fence rows, edges, and cleanup.
- Woody brush + small trees (within the 5" rating) with a consistent, controllable mulch finish.
- Professional uptime: designed for durability and easier maintenance in forestry and land-clearing work.
🧠 Don’t buy this wrong
The “right” DML/SSL setup depends on your hydraulic flow/pressure package, how aggressive the material is, and whether you value
maximum bite (teeth) or smoother, faster throughput (Bite Limiter). Pick the rotor style and motor option to match the carrier—not the other way around.
Choose your configuration
🦷 VT (Fixed Tooth Rotor)
Built around a fixed-tooth rotor for aggressive engagement. VT uses a variable-torque piston motor designed to boost torque when needed
and reduce rotor stalling.
- Strong bite in brush and woody material
- VT torque management helps keep the rotor pulling
⚡ SONIC (Smart Hydraulic Control)
SONIC is an intelligent system that automatically calibrates hydraulic parameters via a control box, keeping the head operating
at maximum capacity across conditions. FAE states up to a 30% performance increase with SONIC.
- Improves harmony between carrier + head (automatic calibration)
- Supports autonomous, consistent “in the power band” operation
🪓 BL (Bite Limiter Rotor)
Bite Limiter rotor is aimed at exceptional speed and performance with lower power requirement, helping keep momentum and productivity high in continuous mulching.
- Efficient throughput / consistent finish
- Often preferred where speed matters and material is repetitive
🧰 Tooling & cut quality
The DML/SSL platform supports different rotor tooling styles—teeth for VT/SONIC, and BL/MINI blades for the Bite Limiter versions. If you want the smallest, most “finished” mulch, counter-blade design matters too (see Spike Pro notes below).
Construction & standard equipment highlights
🛡️ Sealed / dust-resistant body
Enclosed, dust-resistant machine body with the motor enclosed in the frame to help protect critical components in harsh mulching environments.
📟 Pressure monitoring
Working pressure control gauge / external pressure gauge to keep you honest on setup and avoid guessing under load.
🧱 Spike Pro counter-blades
Spike Pro counter-blade design is intended to produce a finer final product size by improving secondary processing inside the chamber.
🪝 Hydraulic rear hood + diverter
Hydraulic rear hood for managing discharge and finish, plus a 12V diverter valve for hood control.
🔩 Heavy-duty rotor support
Interchangeable forged steel rotor shafts and rotor configurations to match VT/SONIC teeth or BL/MINI blade setups.
🧊 Cooling option
Integrated oil cooler kit is available as an option—useful if you run long duty cycles or operate in high ambient temps.
📋 FAE DML/SSL Mulcher – Spec Table
| Model | Working Width | Total Width | Flow (GPM) | Pressure (PSI) | Weight (lb) | Rotor Dia. | Max Material |
|---|---|---|---|---|---|---|---|
| DML/SSL 150 | 58" | 69" | 12–28 | 2600–3600 | 1731 | 11.8" | 5" |
| DML/SSL 175 | 68" | 79" | 12–28 | 2600–3600 | 1951 | 11.8" | 5" |
| DML/SSL/VT 150 | 58" | 69" | 16–30 | 2600–5080 | 1731 | 11.8" | 5" |
| DML/SSL/VT 175 | 68" | 79" | 16–30 | 2600–5080 | 1951 | 11.8" | 5" |
Tip: If your skid steer is on the low end of flow, don’t “hope” it works—match the model and motor setup to your GPM/PSI or you’ll fight heat and stall.
▶️ Watch the Video
See the FAE DML/SSL forestry mulcher in real-world operation.
🎥 FAE DML/SSL Forestry Mulcher Demo
Watch cutting performance, rotor engagement, and finish quality under load.
